With flexible graphite wire, through the core weaving, sleeve weaving and other different weaving processes, to make the woven sealing packing (packing), which with perfect sealing performance, more safety, and it is the best combination of components to solve the sealing problem. Also, we can suppl
Service commitment: Committed to building a high-quality and low-cost refractory overall solution for customers
TEL：+8615083256525

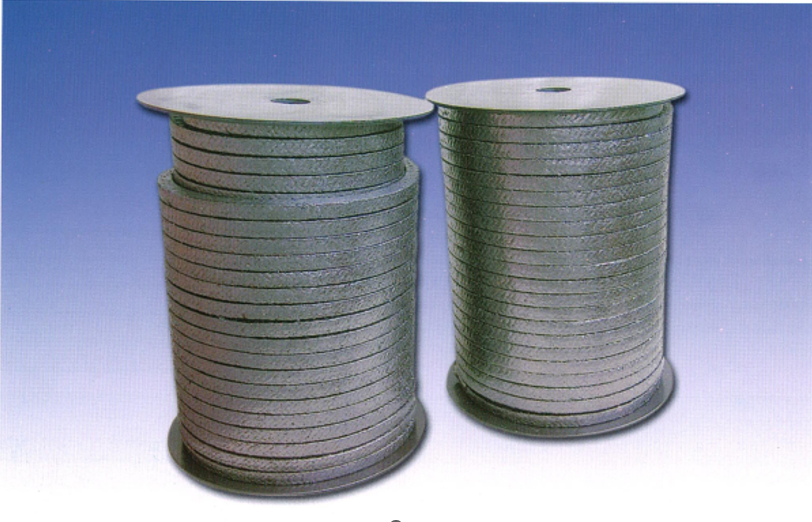

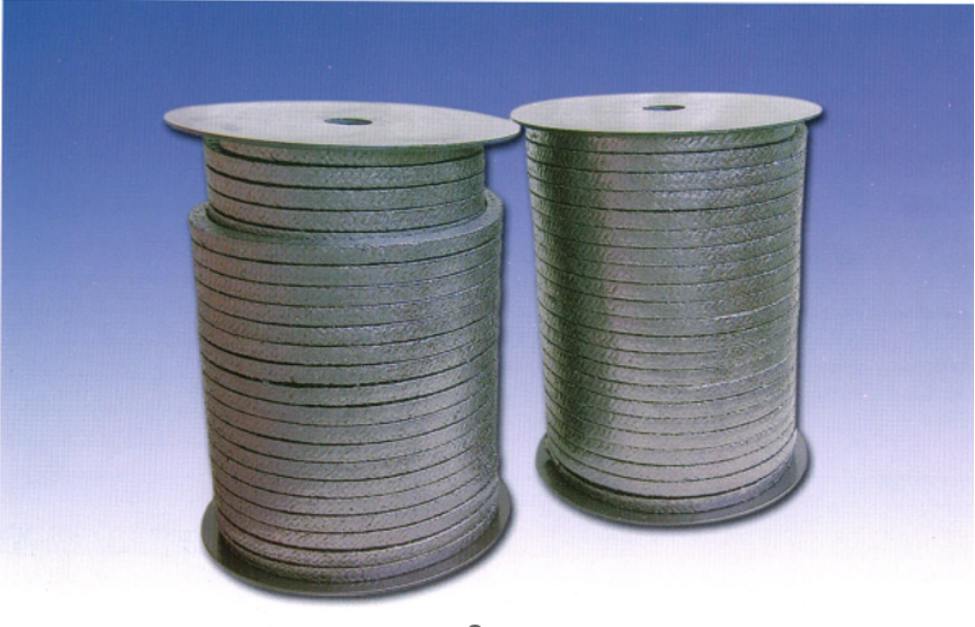

With flexible graphite wire, through the core weaving, sleeve weaving and other different weaving processes, to make the woven sealing packing (packing), which with perfect sealing performance, more safety, and it is the best combination of components to solve the sealing problem. Also, we can supply the products according to the corrosion environment and user’s requirement, and the packing (packing) can be treated by corrosion retardant, which can get the better anti-corrosion function.
Suitable for hot water, steam, oil, heat exchange liquid, acid, alkali, nitrogen, hydrogen, organic solvents, hydrocarbons, low temperature liquid and other media.
Used in petroleum, power generation, chemical, light industry, pharmaceutical and other industrial equipment and devices
项目Items | 单位Unit | 数据Magnitude | |
尺寸偏差 Dimensional deviation | mm | 轴向 axia10.00mm-＊0.50mm | |
轴向 radin10.00mm～＋0.50mm | |||
含碳量 Carbon Content | 石墨含碳量 in Graphite | % | >98 |
盘根含碳量 in packing | % | >90 | |
灰分 Ash | % | <1.5 | |
体积密度 Volumetric density | g/cm³ | 0.9~1.3 | |
压缩率 Compressibility | % | 25-50 | |
回弹率 Resilient rate | % | >15 | |
使用温度 Working temperature | C | -200~850℃ | |
-200-16000非氧化气氛中in non-oxidant | |||
烧矢量 Ignition loss | % | <10 （450℃约烧三小，450℃ burn 3hours） | |
摩擦系数 Friction factor | <0.2 | ||
断裂强度 Breaking strenth | MPa | >10 | |
总硫 Total sulphur content | ppm | <1000 | |
总氯 Total chlorine content | ppm | <50 | |
总金属 Total metal content | ppm | <500 | |
总氟 Total Hluorine content | ppm | <20 | |
柔性石墨编织填料增强纤维类别 Types of Reinforcing fiber for Braided Flexible Graphite Cord | 密度 Density(g/cm³) | 规格 size |
棉钎维增强石墨编织填料 Braided cord reinforced by cotton fiber | 0.9-1.3 | 1/8’’-2’’
3-50mm |
棉纤维+不锈钢丝增强石墨编织填料 Braided cord reinforced by cotton fiber+ stainless steel wire | ||
棉纤维+铬镍合金丝增强石墨编织填料 Braided cord reinforced by cotton fiber+Inconel wire | ||
玻璃钎维增强石墨编织填料Braided cord reinforced by glass fiber | ||
玻璃钎维+不锈钢丝增强石墨编织填料 Braided cord reinforced by glass fiber+ stainless steel wire | ||
玻璃钎维+铬镍合金丝增强石墨编织填料 Braided cord reinforced by glass fiber+ Inconel wire | ||
涤纶钎维增强石墨编织填料Braided cord reinforced by polyester fiber | ||
碳钎维增强石墨编织填料 Braided cord reinforced by carbon fiber | ||
棉钎维+碳纤维增强石墨编织填料 Braided cord reinforced by cotton fiber+ carbon fiber | ||
棉钎维+芳纶纤维增强石墨编织填料 Braided cord reinforced by cotton fiber+ Kevlar fiber | ||
外编铬镍合金丝增强石墨编织填料 Braided cord reinforced by outside-braided Inconel wire+ cotton fiber | ||
外编铬镍合金丝玻璃丝增强石墨编织填料 Braided cord reinforced by outside-braided Inconel wire+ glass fiber | ||
注：增强纤维及其组合可根据客户要求提供Reinforcing fibers and the combination can be supplied according to the requirement by customers | ||
